Chinese Woodworking Machinery ATC CNC Router 1325 For PVC Wood Aluminum

Video

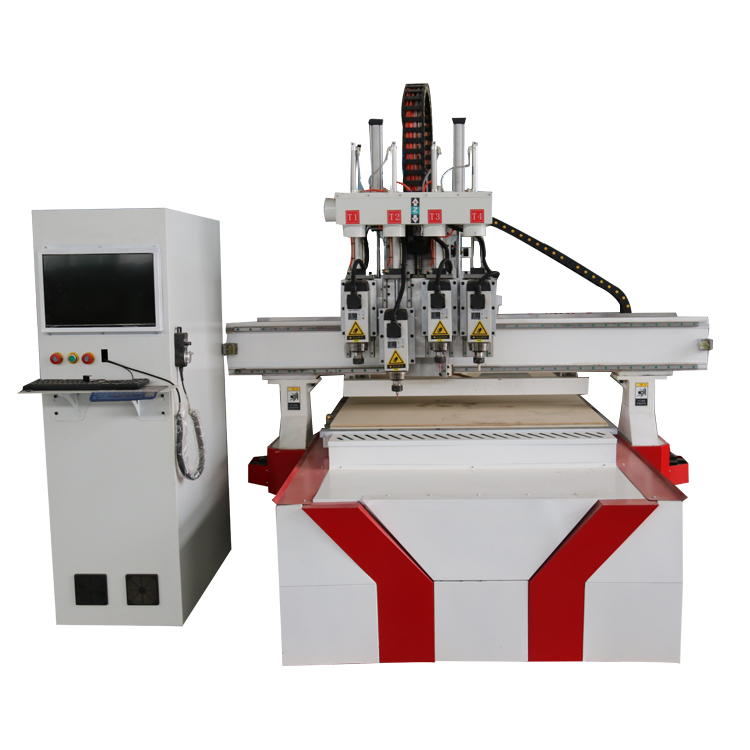

The first detailed picture of Chinese Woodworking Machinery ATC CNC Router 1325 For PVC Wood Aluminum

The second detailed picture of Chinese Woodworking Machinery ATC CNC Router 1325 For PVC Wood Aluminum

Reviews	4.5 /5 (6 ratings)
Inquiries	105
Model	BGC-1325ATC
Category	CNC Router
Brand	BOGONG
Price Range	$4100 - $4700
Supply Ability	10 Sets / Month
Port From	Qingdao, Shanghai, Tianjin
Payment Terms	L/C(Letter of Credit), T/T(Telegraphic Transfer), Western Union

Send a request

hinese Woodworking Machinery ATC CNC Router 1325 For PVC Wood Aluminum used in furniture making industry, furniture decoration industry, wood craft industry, wood decoration industry, automotive tooling industry, solid wood furniture, classical furniture, decoration material, door cabinets, wooden kitchen furniture, wood materials and other materials processing such as Aluminum, Acrylic, MDF, PVC.

China Jinan Bogong Woodworking Wood ATC CNC Router Machine 1325 Price

1. Function: Linear ATC CNC Router suitable for routing,drilling,cutting,edge chamfering,etc.

2. Precision: Excellent Spare parts,accurate precision detection instrument,which make sure the machine with perfect location and working precision.

3. High-speed: Adopt reducer direct design,high torque, high-energy, Y axis dual motor drive, runs smoothly with high efficiency.

4. Table: Double-layer compound grade board table design,rugged construction,non-deformation,with functions of instant adsorption and release.

5. Tool magazine: With an 8 slots Linear tool changer,tool changes to be performed quickly.

China CNC 5 Axis CNC Wood Planer Woodworking Machine Price：

1. Furniture industry: Processing various furniture such as door, window, cabinet, craft wood door, screen, etc.

2. Advertisement: Carving and cutting various labels and number plate,gifts and souvenirs.

3. Arts and Crafts: Carving characters of any languages and graphics on gifts and souvenirs.

4. Any kinds of wood,Aluminum board, plastic, density board, wave board, PVC, acrylic, and other nonmetal materials,etc

Technical Parameters of CNC Wood Router BG-1325

Model	BG-1325
X, Y Working size	1300*2500mm
Z feed Height	200mm (Higher is optional)
Table Surface	Vacuum or T-slot Combined
X, Y Structure	Rack and Pinion Drive, Hiwin Linear Square Guide Rail
Z Structure	Hiwin Linear Square Guide Rail and Ball Screw
Max. Power Consumption	(Without spindle) 3.0Kw
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Spindle Power	3 KW air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	servo motor and drivers
Working Voltage	AC220V/50/60Hz
Command Language	G code
Control System	SYNTEC
X,Y,Z repositioning Accuracy	±0.01mm
X,Y Resolution	<0.01mm
Software	Mach 3 control, NC-Studio or DSP controller are optional
Running Temperature	0 degree - 45 degree
Relative Humidity	30% - 75%

Special Feature for Wood Engraving Machine

1) Using Professional Dust Collecting System (for Cutting Wood) and Vacuum System (for absorbing objects)

2)Advanced digit-control system, handle operation and large liquid crystal display brings out more convenient operation, simpler maintenance and more human nature on the design of the machine

3) The three axes use linearity square guide rail and drive which could meet different cutting demand and has high cutting precision.

4) Unique intelligent calculation fully develops the potential of the electric machinery and leads to high speed processing, the synchronization of curves and straight lines, smoother curves and race speed at 12m/min.

5) Large internal memory capacity of 32M is able to store 30 processing files simultaneously and open and process any of them

6) This model uses domestic-leading PCI controlling system. It uses imported square shape guide rail and the transmission is steady. It adopt high-precision level gear transmission, the maximum speed can reach 30m/m. It can engrave the graph of 1.5*1.5mm clearly.

Our Services

1. Beforesale: We will try to know your requirement about our cnc router specificationand what kind of work you will do.Then we will offer our best solution for your requirement. Then it can confirm each customer can get their real needed machine

2.During production: We will send photos of machines during making. So customers can know more details about the procession of making their machines and give them suggestions.

3. Before shipping: We will take delivery photo and confirm the specification of order to avoid the mistake. Machine will be adjusted before it is delivered.

4.After shipping: We will check when the machine arrive your sea port and approximate date of arrival. So customers can know when it will arrive and make enough preparation.

5.After arrival: We will confirm with customers if machine is in good condition and see if any spare parts missing.

FAQ

1.Can I get a machine according to my own requirements?

Sure.We accept OEM and ODM as your requirements.

2.I am a new machine operator. Do you provide training?

Yes. We supply overseas after-sale service.

3.My machine is broken. Can you repair it for me?

Yes. We have free traning online.

If there is big trouble with your machine in the warrenty time, we can repair it.

4.What's the quality of your machine?

Our machine adopts heavy lathe bed, and each part is processed by CNC

machining center, which greatly improves the accuracy of machine operation.

5:How long is the delivery time of this cnc Router machine?

For standard machines, it would be 7-15 days;

For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.

6: What mode of payment for this CNC Router machine?

T/T, 50% deposit and the balance 50% should be paid before shipment.

7: If some problems happened to this cnc Router machine during warranty period, what should i do?

We will supply free parts in machine warranty period if machine have some problem. While we also supply free after-service forever,so any doubts,just let us know,we will give you solutions in 30 minutes.

Chinese Woodworking Machinery ATC CNC Router 1325 For PVC Wood Aluminum

Chinese Woodworking Machinery ATC CNC Router 1325 For PVC Wood Aluminum
